Mini Flexi Hose Welder - Economical Welder for Stainless Steel and Metal Hoses

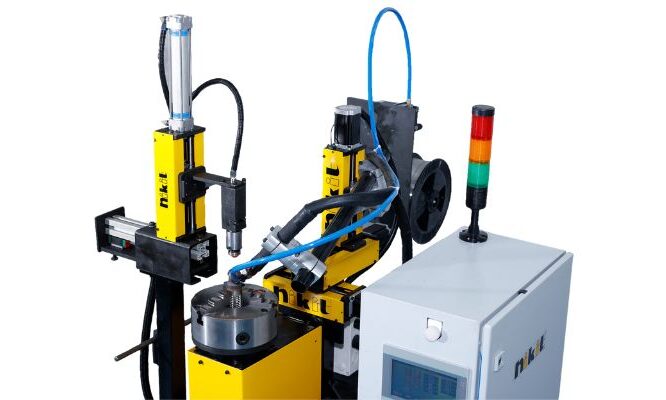

mini-flexi-hose-welder

Our Mini Flexi Hose Welder is developed for stainless steel flexible hoses or corrugated flexible hoses to weld both the sleeve and their adaptors ranging from 5mm to 65mm in diameter ( 1/4 to 2 1/2 inches ), catering to GTAW weld methods with wire feeding. With height, diameter and offsets all automatically settable. This system also combines the worlds most advanced cloud monitoring technology inbuilt, that helps in monitoring every component being welded on this machine.
Thank you for reading this post, don't forget to subscribe!

The system is highly energy efficient with less than 400W consumption and ready to use out of the box module, we in-tend to give the best automation solution in a smaller package.

Mini Flexi Hose Welder Features & Benefits

  • Faster & smoother Movement : Runs up to 10 RPM
  • Touch human machine interface
  • Load capacity : up to 8 kgs
  • Additional Input & Output Module for safety systems & provision for expansion of axes
  • New & Improvised NIKIT – Teach User Interface
  • Economical & Power efficient
  • 200 KHz high speed optical isolated designed IP/OP
  • IIOT module integrated for online data & alert monitoring (requires internet connectivity). All the data logging & machine process alert files with program upgradation can be done online

Mini Flexi Hose Welder Applications

nikit-engineers-mini-flexi-hose-welder-flexible-hose-connector-welding

Flexible Hose Connector Welding

nikit-engineers-mini-flexi-hose-welder-flexible-hose-welded-assembly-post-successful-helium-testing

Hose Welded Assembly Passes Helium Test

nikit-engineers-mini-flexi-hose-welder-stainless-steel-bellow

SS below Welding

nikit-engineers-mini-flexi-hose-welder-flexible-hose-welding-with-connector

Flexible Hose Welding with Connector

nikit-engineers-mini-flexi-hose-welder-flexible-hose-welding-of-sleeves

Flexible Hose Welding of Sleeves

Mini Flexi Hose Welder Application Industries

nikit-engineers-mini-flexi-hose-welder-semiconductor-industry

Semiconductor Fabrication Industry

nikit-engineers-mini-flexi-hose-welder-aerospace-industry

Aerospace Industry

nikit-engineers-mini-flexi-hose-welder-pharmaceutical-industry

Pharmaceutical Industry

nikit-engineers-mini-flexi-hose-welder-defence-industry

Defense Industry

Data Logging and Cloud Monitoring

The machine Data Logger represents leading edge technology in welding and machine data collection and logging. The micro-controller based weld data acquisition system provides a means of measuring and documenting all basic machine parameters when used with external PC.
Cloud-based monitor that requires either an Ethernet connection or can be used on a cellular network. Once the physical connections have been set and powered, the rest of the setup is completed on a web browser.

Basic Feature

  • Input & Output Monitoring
  • Maintenance Monitoring
  • LAN Module
  • Sequence Reports
  • Purging Enable / Disable
  • Remote Monitoring
  • Machine Data Logging
  • Weld Cycle Limits

Advanced Feature

  • Error Report Sheets
  • Gas Pressure Monitoring
  • Wire Feed Monitoring
  • Air Pressure Monitoring
  • Camera Monitoring System
  • Operator Data Logging
  • + Basic Features

Monitoring Benefits

Operator Data Logging

  • Can get the reports of operator work timings in the machine.

Air Pressure Monitoring

  • Complete machine pneumatic line air pressure can be monitored.

Error Report

  • Machine errors, input/output errors, sequence errors etc. Can be monitored through the report generated by the system.

Sequence Report

  • Machine sequence. Flow chart can be monitored.

Machine Data Logging

  • Machine used time, production rate, power consumption etc can be monitored.

Weld Cycle Limits

  • Can monitor and set the weld cycle limits per shift or based on the production requirements.

Wire Feed Monitoring

  • MIG / TIG wire feeding can be monitored. (Helps in planning for the pre ordering of wire spools without interrupting the production)

Maintenance Monitoring

  • Machine maintenance report, online service, programming modification/ change, copy etc can be done.

Purging Enable/Disable

  • Fine art of getting a URUNAMI weld bead by creating a gas chamber inside the component. (feature is available only for the orbital welder)

Camera Monitoring System

  • Can monitor & access the camera setting and features. (If camera is used in the machine)

Remote Monitoring

  • All features of the machine can be monitored over the internet through this Machine facility.

LAN Module

  • LAN cable connecting port is provided to connect & transfer the data from control system to cloud storage facility over internet.

Gas Pressure Monitoring

  • Welding gas pressure can be monitor.

Input & Output Monitoring

  • Machine IP/ OP can be monitored.

Mini Flexi Hose Welder Model Specifications

mini-flexi-hose-welder

MFHW-O-V6.1

  • Machine size: 400mm x 400mm x 400mm
  • Stroke: X axis : 150mm ; a 360ᵒ
  • Weld speed: 10 degree/sec
  • Manual torch height adjustment : 100mm
  • Axis repeatability: +/- 0.2 mm
  • Interpolation Repeatability : +/- 0.1 mm
  • Touch User interface screen: 4” screen

Add-ons
  • AVC : Auto Voltage Controller , Linear axis 100mm
  • ATWF : Auto TIG Wire feeder
  • Chuck dia 80 : 3 jaw manual chuck
  • Chuck dia 130 : 3 jaw manual chuck

Available Accessories

  • Welding power source MIG
  • Welding power source TIG
  • Auto Voltage Controller with linear axes 100mm
  • Fume extraction system
  • Cloud Monitoring
  • Remote access
  • Auto darkening Welding helmet
  • Gloves & welding apron
  • UPS –1.5KVA
  • Auto torch cleaning system
  • Camera monitoring system
  • Weld Parameter integration
  • Customized welding fixture
