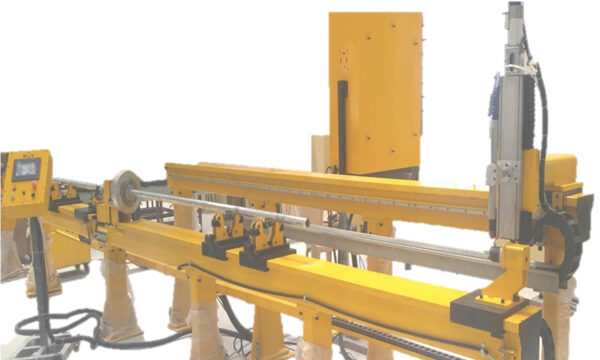

Profile Cutting Machine for Tubes

Machine Specification
  • X axis : 6500mm ; Y– AXIS : 300mm ; Z – AXIS : 500mm ; A – AXIS : +/- 360 deg pneumatic chuck
  • Linear Speed : 150 mm/sec
  • Rotary Speed : 50 deg/sec
  • Positioning Accuracy : +/- 0.1 mm
  • Interpolation Repeatability : +/-0.1 mm
Features
  • Variable length from 300 mm to 6000mm can be cut
  • Supports the cutting of thickness 0.2 to 6 mm
  • Power controlled in steps in high capacity machines for extended power saving.
  • Robust design, Cuts mild steel, stainless steel tubes and aluminum tubes with high precision
  • High productivity and low operating costs
