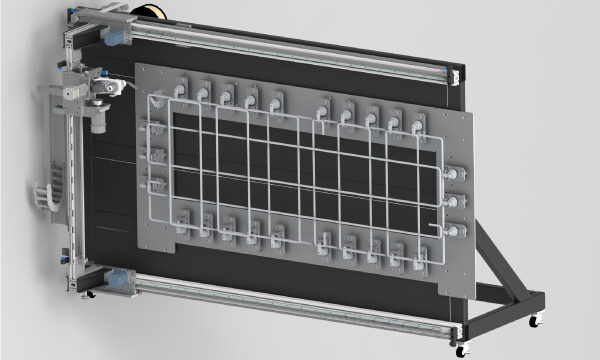

Lig and Lig Assembly Welder

Thank you for reading this post, don't forget to subscribe!

Machine Specification
  • X1 &X2 AXIS : 2200mm ; Y– AXIS : 1200mm ; Z – AXIS : 1500mm ; A – AXIS : +/- 370 deg
  • Linear Speed : 100 mm/sec
  • Rotary Speed : 50 deg/sec
  • Positioning Accuracy : +/- 0.1 mm
  • Interpolation Repeatability : +/-0.1 mm
Features
  • Controlled by 5 axis motion controller
  • Provided with a Human Machine Interface
  • Simple and Ergonomic design
  • Power efficient : 01 kwh
  • Lig size up to 1.2 Meters width x 2.5 Meters Length can be welded
